Standard
BS EN 50525-2-11, DIN EN 50525-2-11; VDE 0285-525-2-11, EN 50525-2-11.
Technical Data
- Nominal Voltage : 300/500V (H05VV-F & H05VVH2-F); 300/300V (H03VV-F & H03VVH2-F)
- Insulation Resistance : Min. 20 GΩ x cm/li>
- Temperature Range : Flexing -5°C to +70°C. Fixed Installation : -30°C to +70°C
- Minimum Bending Radius: Flexing 7.5 x cable ø; Fixed installation 4 x cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V

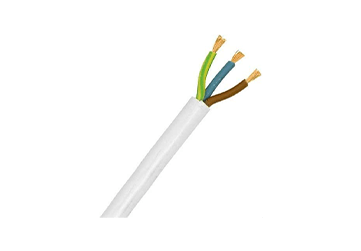

Construction
Bare copper, fine wire conductors, as per EN 60228 Cl.5. PVC core insulation TI2,
to EN
50363-3.
Harmonised core colour to HD 308 .Cores stranded in layers with optimal
lay-length.
PVC outer sheath TM2, to EN 50363-4.1.
